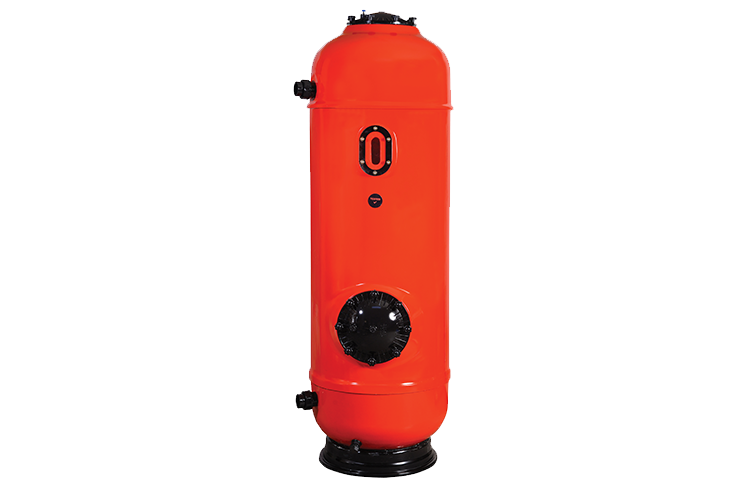

DIN Standard Model Sand Filters
Get a Quote
Product Brochure
Assembly Diagram
| Code | Material Type | Quantity/Box | Quantity/Box |
| OSC ÇKTFLT620 | Ø 620 mm Oscarpool Polyester Filter | 37,00 | 1 |
| OSC ÇKTFLT800 | Ø 800 mm Oscarpool Polyester Filter | 65,00 | 1 |
| OSC ÇKTFLT920 | Ø 920 mm Oscarpool Polyester Filter | 85,00 | 1 |
| OSC ÇKTFLT1050 | Ø 1050 mm Oscarpool Polyester Filter | - | 1 |
| OSC ÇKTFLT1250 | Ø 1250 mm Oscarpool Polyester Filter | - | 1 |
Made of GRP: Complete with multi-way valve, fittings, manometer and air purge. Internal Structure: Without stand, with octopus fountain.
| Code | Flow Rate (m3 / hour) | D | H1 | H2 | H3 | H4 | H5 | H6 | H7 |
ANTHRACITE 0,8-1,6 mm (lt) |
QUARTZ SAND 0,5-1 mm (lt) |
QUARTZ SAND 0,5-1 mm (kg) |
QUARTZ SAND 1-3 mm (kg) |
Connection | ||
| 30 m3/h/m2 |
40 m3/h/m2 |
Ø | DN | |||||||||||||
| OSC ÇKTFLT620 | 9 | 12 | 620 | 196 | 190 | 60 | 17 | 32 | 134 | 126 | 200 | 200 | - | 150 | 50 | 40 |
| OSC ÇKTFLT800 | 15 | 20 | 800 | 198,5 | 192,5 | 80 | 17 | 35 | 137 | 126 | 275 | 275 | - | 200 | 200 | 50 |
| OSC ÇKTFLT920 | 20 | 26,5 | 920 | 213 | 207 | 98 | 21 | 55 | 154 | 126 | 425 | 400 | - | 375 | 375 | 50 |
| OSC ÇKTFLT1050 | 26 | 34 | 1050 | - | - | - | - | - | - | - | 550 | 450 | - | 275 | 275 | 80 |
| OSC ÇKTFLT1250 | 36 | 48 | 1050 | - | - | - | - | - | - | - | 725 | 675 | - | 500 | 500 | 80 |
Technical Information
